About this item

• 65 built-in guitar effects and 13 amp models

• Free download of zoom guitar lab mac/windows software

• 30-second lopper

• 68 built-in rhythm patterns

• Standard guitar input, aux input for external audio players and amp/headphone output

Technical Details

From the manufacturer

ZOOM Guitar Lab Software Included

With Zoom Guitar Lab, explore an endless world of artist patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.

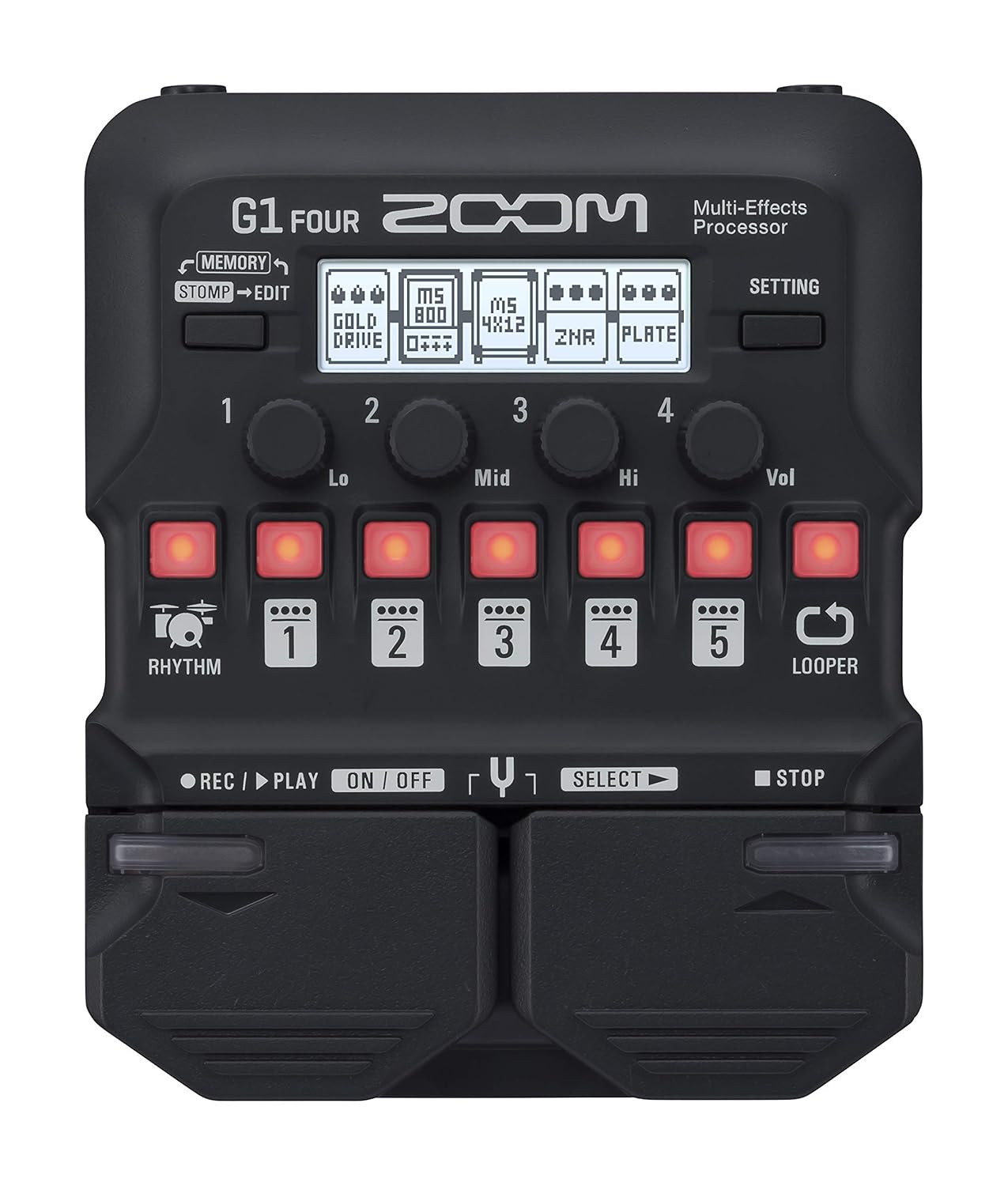

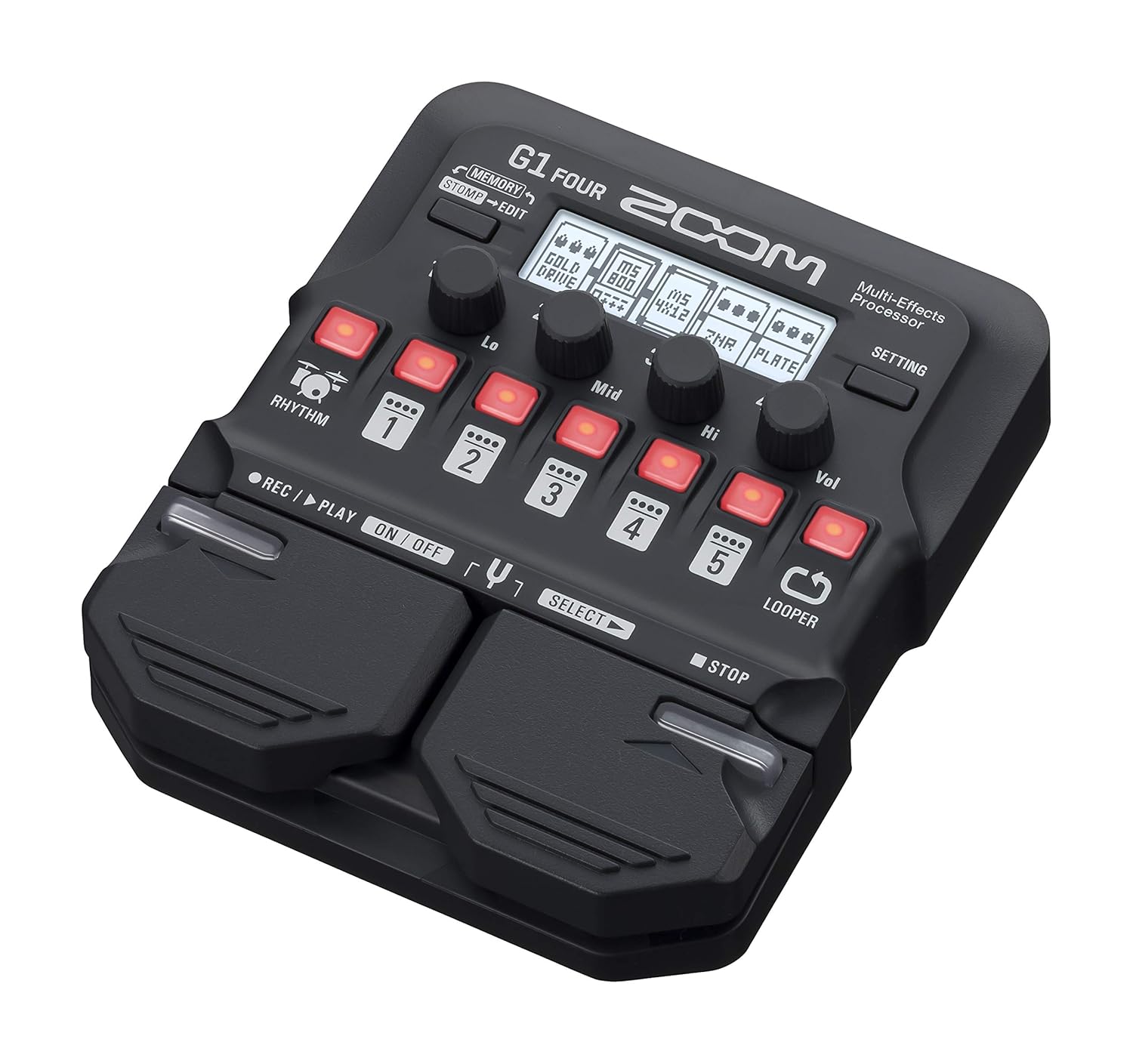

G1 Four

Guitar Multi-Effects Pedal

The Zoom G1 Four features over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!

• G1 Four offers over 60 built-in effects

• 13 amp models for simulating classic rigs

• 68 built-in rhythm patterns which can be used in conjunction with the Looper

• 50 memory locations for storing user-created patches

Zoom G1 Four Multi-Effects Pedal Features

Your Favorite Amps & Cabinets

With 13 classic amps and cabinets like Fender, Marshall, Orange and more, the G1 series brings big stage sound wherever you go.

Stay Looped In

The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.

Sounds That Inspire

Both pedals have more than 60 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation.

Zoom G1 Four Multi-Effects Pedal Additional Features

Auto Patch Backup

Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.

Built-In Drums!

Play along with 68 great-sounding rhythm patterns in different time signatures, including 4/4, 3/4 and more.

Perform Live

Seamlessly switch up your sounds during live shows using either of 2 performance modes.

Preselect mode lets you jump from patch to patch without affecting the patch your currently playing.

STOMP mode lets you turn individual effects on and off with the tap of your foot.

Off the Floor

The G1 Four/G1X Four’s control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.

External dimensions

• Height: 156 mm (D) × 130 mm (W) × 42 mm (H)

• Weight: 340 g (excluding batteries)

ZOOM G1 Four Specifications

Guitar Multi-Effects Pedals

• Maximum number of simultaneous effects: 5

• User patches: 50

• Sampling frequency: 44.1 kHz

• A/D conversion: 24-bit, 128× oversampling

• D/A conversion: 24-bit, 128× oversampling

• Signal processing: 32−bit

• Display: 128x32 dot matrix LCD

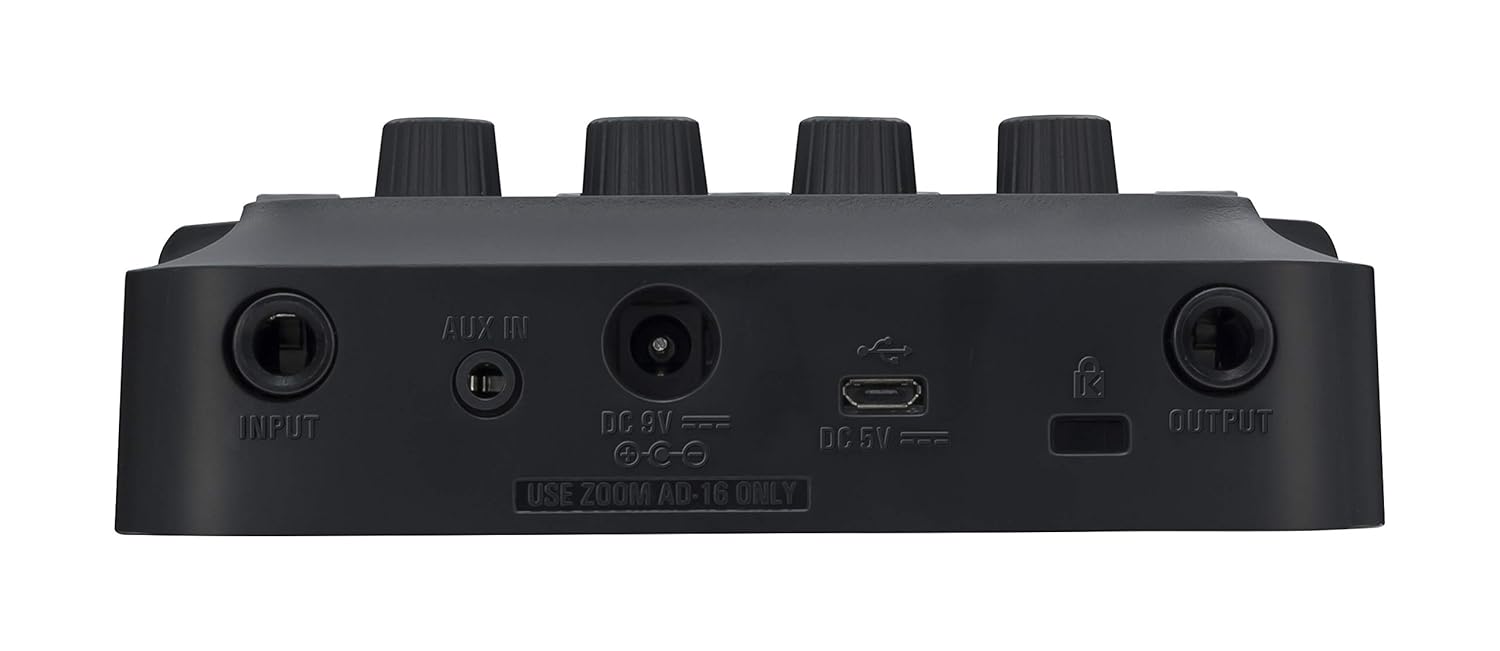

• Input: Standard mono phone jack Rated input level: -20 dBu Input impedance (line): 470 kΩ

• Output: Standard stereo phone jack (combined line/headphone) Maximum output level: Line +2 dBu (10 kΩ or more output impedance) Headphones 17 mW + 17 mW (32Ω load)

• Input S/N: 120 dB

• Noise floor (residual noise): -97 dBu

• Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)

• USB: USB MIDI, USB Micro-B Power can also be supplied through the USB port. When using a cable designed only for power, other USB functions cannot be used.
